SL-Series Modular Jack, RJ45, Cat6 Shielded, Gray
Detail produk:
| Nama merek: | CommScope |
| Nomor model: | 2153448-4 |
| Dokumen: | 2153448-4 _ SLX...GY.pdf |
|
Informasi Detail |
|||
| Kategori ANSI/TIA: | 6 | Jenis kabel: | Terlindung |
|---|---|---|---|
| Warna: | Abu-abu | Tipe Konduktor: | Padat | Terdampar |
| Jenis Penutup Debu Terintegrasi: | Tidak ada | Pemasangan: | Pelat muka dan panel Seri SL |
| Menyoroti: | Cat6 shielded modular jack,RJ45 modular jack gray,SL-Series shielded RJ45 connector |
||
Deskripsi Produk

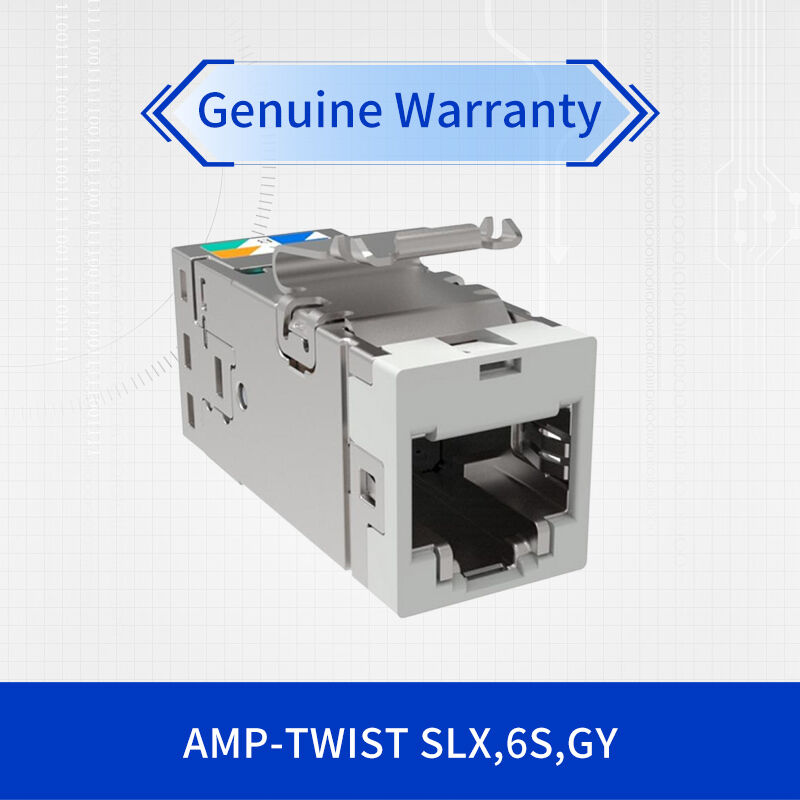

The CommScope NETCONNECT SLX-6S-GY represents a premium Category 6 shielded modular jack designed for environments requiring enhanced electromagnetic interference protection. This RJ45 modular jack combines superior transmission performance with comprehensive shielding, making it ideal for industrial settings, healthcare facilities, data centers, and other applications where electrical noise may impact network performance.
As part of the advanced SLX Series, this shielded modular jack offers robust construction and reliable performance in challenging conditions. The modular jack supports both solid and stranded conductors, providing installation flexibility for various cabling scenarios.
- Category 6 performance with full shielding
- EMI/RFI protection for noisy environments
- IEEE 802.3bt Type 4 PoE support (90W)
- Gray housing for professional aesthetics
- 24 units per package for project efficiency
- Enhanced compatibility with larger cables
| Parameter | Specification |
|---|---|
| Product Number | SLX-6S-GY |
| Performance Rating | Category 6 Shielded |
| Connector Type | RJ45 Shielded Modular Jack |
| Housing Color | Gray |
| Package Quantity | 24 units |
| Shielding Type | Fully Shielded Construction |
| Max Cable Diameter | 8.5 mm (0.335 in) |
| PoE Support | IEEE 802.3bt Type 4 (90W) |
| Operating Temperature | -10°C to +60°C |
This Category 6 shielded modular jack provides comprehensive electromagnetic interference protection through its fully shielded design. The modular jack construction effectively minimizes the impact of external electrical noise, ensuring signal integrity in environments with high EMI levels.
The enhanced shielding of this modular jack maintains proper grounding continuity when used with shielded cabling systems. The robust construction provides consistent shielding effectiveness across the operating temperature range from -10°C to +60°C.
The SLX-6S-GY shielded modular jack fully supports high-power PoE applications per IEEE 802.3bt Type 4 specifications, delivering up to 90W to connected devices. This shielded modular jack maintains exceptional performance through more than 3,000 mating cycles under full PoE load conditions.
This Category 6 shielded modular jack is ideal for powering high-demand devices in industrial and commercial settings, including PTZ security cameras, wireless access points, digital signage, and building automation equipment.
This shielded modular jack features insulation displacement contact (IDC) termination that accommodates both solid (26-22 AWG) and stranded (26-24 AWG) conductors. The modular jack accepts larger cable diameters up to 8.5 mm and insulated conductor diameters up to 1.6 mm, providing enhanced compatibility with various cabling types.
Designed for compatibility with SL Series faceplates and panels, this gray shielded modular jack provides perfect color coordination with SL-style gray faceplates and surface mount boxes.
CommScope's SLX-6S-GY shielded modular jack meets rigorous international standards including ANSI/TIA-568-C.2 and ISO/IEC 11801 Class E. The product carries comprehensive environmental compliance including RoHS, China-RoHS, UK-ROHS, and REACH-SVHC requirements.
The modular jack construction utilizes high-quality polycarbonate and Zamak materials for the housing with gold-plated beryllium copper contacts featuring 1.27 μm plating thickness.
What are the primary applications for a shielded modular jack?
This Category 6 shielded modular jack is ideal for environments with high electromagnetic interference, including industrial facilities, healthcare settings, data centers, and locations near heavy machinery or electrical equipment.
Does the shielding require special installation considerations?
Yes, proper grounding of the shield is essential for optimal performance. Ensure continuous shield connection throughout the cabling system and verify proper grounding according to manufacturer specifications.
What cable types are compatible with this modular jack?
This shielded modular jack accommodates larger cable diameters up to 8.5 mm and works with both solid (26-22 AWG) and stranded (26-24 AWG) conductors, providing excellent installation flexibility.
- Ensure proper shield grounding for optimal EMI protection
- Use recommended JTT termination tool for consistent IDC connections
- Maintain shield continuity throughout the entire channel
- Verify proper cable strain relief for long-term reliability
- Follow T568A or T568B wiring scheme consistency
- Test shield continuity and grounding after installation
- Ensure compatibility with SL Series faceplates and panels
- Verify proper mating with shielded plugs for complete EMI protection
