NETCONNECT Category 6A 24 Port 1U Rack-Mountable Patch Panel for High-Density Network Installations
Detail produk:
| Nomor model: | 760237032 |
| Dokumen: | 760237032 _ .pdf |
|
Informasi Detail |
|||
| Kategori ANSI/TIA: | 6A | Jenis kabel: | Unshielded |
|---|---|---|---|
| Warna: | Hitam | Tipe Konduktor: | Padat | Terdampar |
| Modul, kuantitas: | 4 | Gaya Panel: | Lurus |
| Menyoroti: | Category 6A Patch Panel,24 Port Patch Panel,1U Rack-Mountable Patch Panel |
||
Deskripsi Produk

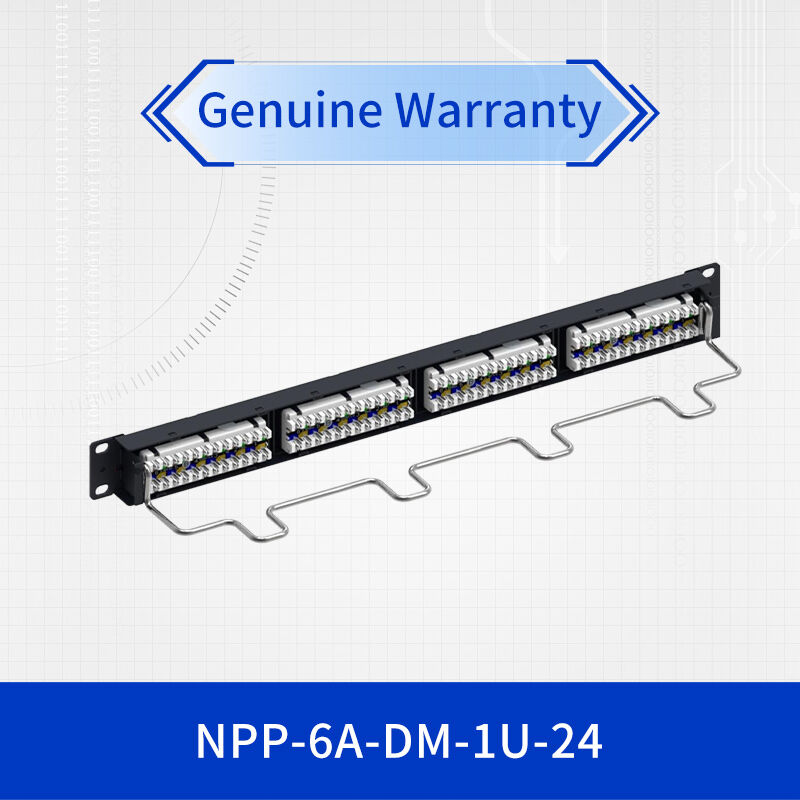

NETCONNECT Cat 6A Unshielded Distribution Module Panel, 1U, 24 Port
Product Overview
The NETCONNECT represents the next generation of high-performance Category 6A unshielded patch panel technology. Engineered to support 10 Gigabit Ethernet applications up to 100 meters, this 1U rack-mountable distribution module delivers exceptional performance while maintaining backward compatibility with existing Category 6 and 5e infrastructures. With 24 ports in a compact 1U form factor, this patch panel optimizes rack space while ensuring reliable connectivity for demanding network environments.
Advanced Features & Benefits
10GbE Performance
Supports 10 Gigabit Ethernet up to 100 meters with 500MHz bandwidth, exceeding Category 6A requirements.
High-Density Design
24 ports in a single 1U space maximize rack efficiency while maintaining superior cable management capabilities.
Enhanced PoE Support
Fully compliant with IEEE 802.3bt (Type 4) for high-power PoE++ applications up to 90W.
Superior Alien Crosstalk Protection
Advanced design minimizes alien crosstalk for reliable 10GbE performance in high-density installations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Unshielded Distribution Module Panel, Category 6A |
| Performance Category | ANSI/TIA Category 6A, ISO/IEC Class EA |
| Port Configuration | 24 ports, 1U rack space |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Termination Type | IDC (Insulation Displacement Connection) |
| Wiring Schemes | T568A & T568B |
| Compatible Cable | 22-24 AWG, solid or stranded (0.762mm - 1.168mm diameter) |
| Dimensions (HxWxD) | 44.45mm x 482.6mm x 119.38mm (1.75" x 19" x 4.7") |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Insertion Life | 750+ cycles minimum |
Performance Specifications
| Parameter | Specification |
|---|---|
| Bandwidth | 500 MHz (Category 6A Performance) |
| Data Rate Support | 10GBASE-T up to 100m, 1000BASE-T up to 100m |
| Dielectric Withstand Voltage | 1,000 Vac contact-to-contact, 1,500 Vac conductive surface |
| Insulation Resistance | 500 MΩ minimum |
| Current Rating | 1.5 A @ 20°C (68°F) |
| Plug Retention Force | 133 N (29.9 lbf) minimum |
| PoE Compliance | IEEE 802.3bt (Type 4) for up to 90W power delivery |

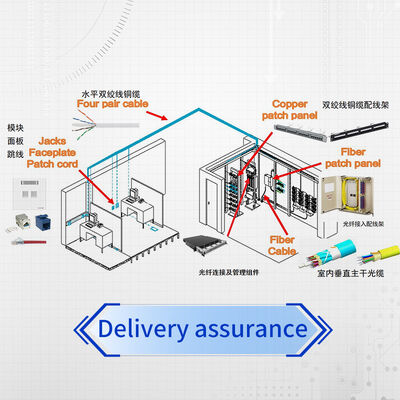

Recommended Applications
- 10GbE Network Infrastructure: Ideal for backbone and horizontal cabling supporting 10 Gigabit Ethernet applications
- High-Density Data Centers: Perfect for server rooms and data centers requiring maximum port density with 10GbE performance
- Power over Ethernet Deployments: Supports high-power PoE++ applications including PTZ cameras, access points, and thin clients
- Enterprise Campus Networks: Designed for corporate environments requiring future-proof 10GbE connectivity
- Healthcare and Education: Suitable for bandwidth-intensive applications in medical imaging and digital learning environments
Installation & Design Features
This Category 6A patch panel features a straight panel design with integrated cable management, specifically engineered to maintain 10GbE performance in high-density installations. The high-impact, flame-retardant thermoplastic construction with powder-coated steel frame ensures durability and reliable performance. The panel's advanced design minimizes alien crosstalk, a critical factor for maintaining 10GBASE-T performance in bundled cable environments.
Compliance & Certifications
- UL 94 V-0 Flammability Rating
- RoHS, UK RoHS, and China RoHS Compliant
- REACH SVHC Compliant
- ISO 9001:2015 Quality Management System
- RCM Compliant (Electrical Safety & Telecommunications)
- UL and cUL Safety Standards
Frequently Asked Questions
What is the difference between Category 6 and Category 6A performance?
Category 6A supports 10 Gigabit Ethernet up to 100 meters with 500MHz bandwidth, while Category 6 is limited to 10GbE up to 55 meters with 250MHz bandwidth. The Category 6A patch panel provides superior alien crosstalk performance for reliable 10GbE in high-density installations.
Does this patch panel support high-power PoE applications?
Yes, this Category 6A patch panel fully complies with IEEE 802.3bt (Type 4) standards, supporting PoE++ applications with up to 90W power delivery per port for demanding devices like PTZ cameras and high-performance access points.
What types of cable are compatible with this Category 6A patch panel?
This unshielded distribution module supports both solid and stranded conductors ranging from 22-24 AWG, with cable diameters between 0.762mm (0.03in) and 1.168mm (0.046in), compatible with standard Category 6A cabling.
Installation Notes
- Ensure proper cable separation and bundling to maintain alien crosstalk performance
- Use Category 6A certified components throughout the channel for guaranteed 10GbE performance
- Follow manufacturer recommendations for bend radius and cable management
- Verify proper termination techniques to maintain impedance characteristics
- Test installed channels to validate Category 6A performance specifications
