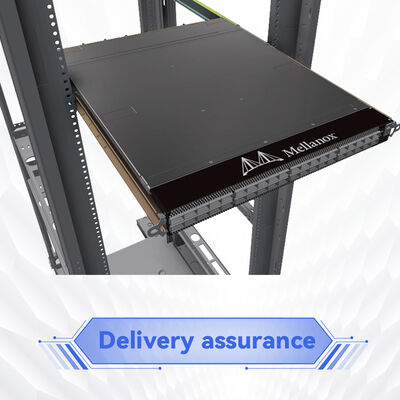

NVIDIA MQM9700-NS2R Quantum-2 Series 400Gb/s InfiniBand Smart Switch | 64-Port | Reverse Airflow (C2P)
Detail produk:
| Nama merek: | Mellanox |
| Nomor model: | MQM9700-NS2R (920-9B210-00RN-0M2) |
| Dokumen: | MQM9700 series.pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | Negotiate |
| Kemasan rincian: | Kotak luar |
| Waktu pengiriman: | Berdasarkan persediaan |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | Pasokan dengan proyek/batch |
|
Informasi Detail |
|||
| Model TIDAK.: | MQM9700-NS2R (920-9B210-00RN-0M2) | Tingkat transmisi: | 400 gram |
|---|---|---|---|
| Pelabuhan: | 64 | teknologi: | Infiniband |
| Kecepatan Maks: | Ndr | Paket Transportasi: | Sedang mengemas |
Deskripsi Produk
NVIDIA MQM9700-NS2R Quantum-2 Series
400Gb/s InfiniBand Smart Switch with Reverse Airflow (C2P) Design
Core Features
High-Density Performance
64 non-blocking 400Gb/s ports delivering 51.2 Tb/s aggregate throughput in a single 1U chassis. This network switch provides the highest port density available for data center deployments.
Reverse Airflow (C2P)
Optimized cooling with Connector-to-Power airflow direction. The MQM9700-NS2R is engineered for data centers using rear-door heat exchange or specific cooling architectures.
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Model | MQM9700-NS2R | 64-port 400Gb/s Managed Switch |
| Port Configuration | 64 × 400Gb/s NDR InfiniBand | 32 OSFP connectors, non-blocking architecture |
| Airflow Design | Connector-to-Power (C2P) | Reverse airflow, rear-to-front cooling |
| Throughput | 51.2 Tb/s (bidirectional) | Aggregate switch capacity |
| Power Supply | 2 × 1+1 redundant | 200-240V AC, 80 Plus Gold certified |
| Dimensions | 1U × 17.0" × 26.0" | Standard rack mount (43.6mm × 438mm × 660.4mm) |
| Management | MLNX-OS with Subnet Manager | CLI, WebUI, SNMP, JSON-REST API support |
| Operating Temp | 0°C to 40°C | 10% to 85% non-condensing humidity |
Airflow Design Comparison
MQM9700-NS2R (This Model)
Connector-to-Power (C2P): Air enters from the port/connector side and exhausts through the power supply side. Ideal for data centers with specific hot aisle/cold aisle configurations.
- Optimal for rear-door heat exchangers
- Compatible with reverse cooling architectures
- Reduced mixing of hot and cold air
MQM9700-NS2F (Forward Airflow)
Power-to-Connector (P2C): Traditional airflow where air enters from the power supply side and exhausts through the port side. Standard for most data center deployments.
- Standard forward airflow design
- Compatible with traditional cooling
- Widely adopted configuration
Target Applications
Enterprise Data Centers
With reverse airflow design, this mq9700 model is perfect for modern data centers using advanced cooling solutions like rear-door heat exchangers or contained hot aisle configurations.
AI/ML Training Clusters

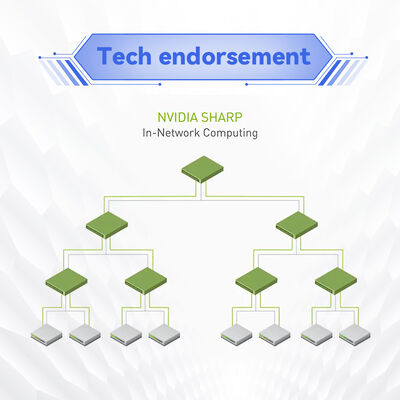

Accelerate distributed training workloads with SHARPv3 technology. The high-performance network switch connects thousands of GPUs with minimal latency.
HPC & Research Facilities
Scientific computing applications benefit from the 400Gb/s throughput and adaptive routing capabilities. The nic card compatible switch ensures optimal data movement.
Cloud Service Providers
Build scalable, high-performance cloud infrastructure with flexible topology support (Fat Tree, DragonFly+, etc.). This network hardware enables efficient multi-tenant environments.
Technical Advantages
Advanced Cooling Optimization
The C2P airflow design of MQM9700-NS2R enables better thermal management in specific data center layouts, reducing cooling costs and improving energy efficiency.
Intelligent Network Management
Built-in subnet manager supports up to 2,000 nodes out-of-the-box. MLNX-OS provides comprehensive management through multiple interfaces including REST API.
Future-Proof Investment
Backward compatible with previous InfiniBand generations. Port-split technology allows flexible configuration as 128×200Gb/s ports, protecting your infrastructure investment.
